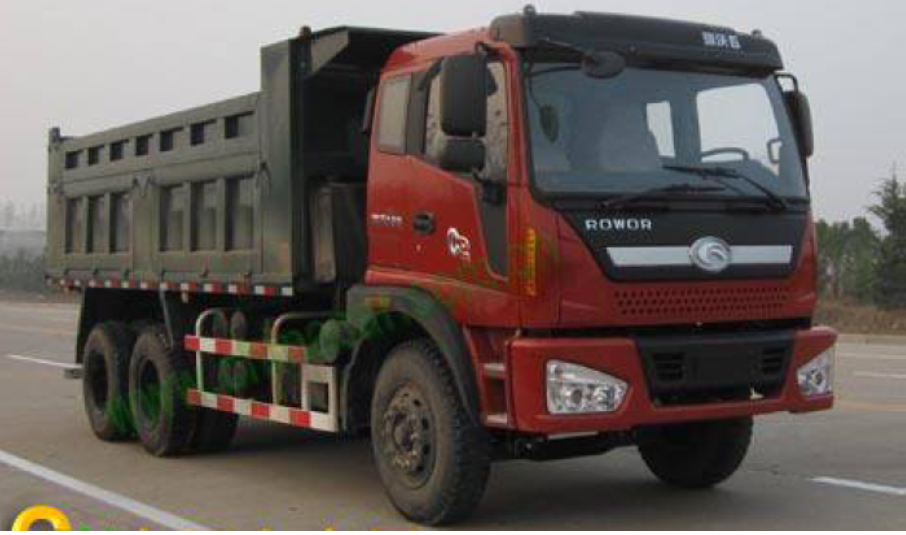

BJ3258DLPHB-21Remorque| Vehicle model | BJ3258DLPHB-21 | ||
| Cabin | 3P22AP6105E(B1)64 | ||
| F2200A，tiltable | |||
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 8335×2360×2870 | |
| Inner dimensions of the cargo body (LxWxH)mm | 5500×2200×1300 | ||
| Driving type | 6x4 | ||
| Wheel base (mm) | 3950+1300 | ||
| Weight data | Curb weight (kg) | 11915 | |
| Rated payload （kg） | 25000 | ||
| Persons in cab (persons) | 3 | ||
| Whole vehicle main performance | Max. speed（km/h） | 85 | |
| Engine | Model | WP6.210E32 | |
| Displacement（L） | 6.75 | ||
| Rated power（kw/rpm） | 155/2300 | ||
| Steering gear | model | Whole hydraulic Power boosting steering gear | |
| Gearbox | Model | 8S150 | |
| Rear axle | Type/Main reducer ratio | 435S/5.143 | |
| Suspension | Front suspension/Leaf spring number | 10/11 | |
| Brake system | Service brake and boostingType | Dual circuits pneumatic brake | |
| Wheels and tyre size | 10+1/9.00-20 | ||
| Oil top form | dump | ||
