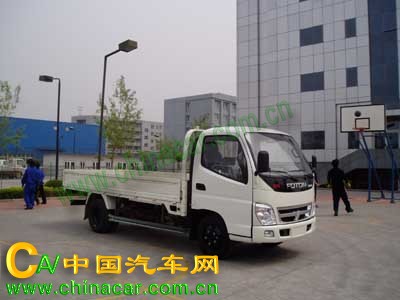

BJ1049V9JE6-ACamion léger| AUMARK TX | ||||
| Vehicle brand | FOTON 2.5T | |||
| Vehicle model | BJ1049V9JE6-A | |||
| Cabin | L1800single row seat,tiltable | |||
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5995×2000×2290 | ||
| Inner dimensions of the cargo body (LxWxH)mm | 4230×1900×400 | |||
| Driving type | 4×2 | |||
| Wheel base (mm) | 3360 | |||
| Wheel track (front/rear) (mm) | 1530/1485 | |||
| Min. ground clearance (mm) | ≥188 | |||
| Weight data | Curb weight (kg) | 2565 | ||
| Rated payload （kg） | 4095 | |||
| Persons in cab (persons) | 2 | |||
| Gross vehicle weight（kg） | 6790(:2570/4220) | |||
| Whole vehicle main performance | Max. speed（km/h） | ≥95 | ||
| Max. slope of climb（%） | ≥25 | |||
| Fuel consumption（L/100km） | ≤13 | |||
| Min. turning diameter（m） | ≤14.5 | |||
| Engine | Model | Phaser110Ti | ||
| Type | Four-cylinder, in-line,DI,diesel engine | |||
| Displacement（L） | 3.99 | |||
| Rated power（kw/rpm） | 81/2600 | |||
| Rated torque （N.m/rpm） | 360/1400-1600 | |||
| Gearbox | Model | 5T108 | ||
| Speed ratio | i1:4.754,i2:2.733,i3:1.680,i4:1.00,i5:0.751,iR:5.084 | |||
| Clutch | Type | single disc,dry type,diaphragm spring,φ330×φ200 | ||
| Rear axle | Type/Main reducer ratio | Whole banjo type, pressing axle house：4.875 | ||
| Suspension | Front suspension/Leaf spring number | leaf spring, non-independent suspension, with auxiliary leaf spring：3+1 | ||
| Rear suspension/Leaf spring number | leaf spring, non-independent suspension, with auxiliary leaf spring：6+7 | |||
| Steering gear | Mechanical circular ball type with power steering | |||
| Brake system | Service brake | Drum brake (hydraulic dual circuits) | ||
| Parking brake | Central drum brake | |||
| Auxiliary brake | Exhaust brake | |||
| Wheels and tyre size | 6+1/7.00R16 | |||
| Electric device | Rated voltage | 24 | ||
| Fuel tank (L) | 80 | |||
| Basic equipment | Adjustable steering wheel、Exhaust brake、hydraulic operation with cutch booster、Electric flameout device、power steering、strypped-down Wooden effect insert parts inner decoration | |||
